Automatic Loader
—
The fully automatic loader is applied to the plate collection work of the SMT production line, by replacing the anti-static material frame for plate collection. The full-automatic plate collecting machine can be used not only behind reflow soldering welding and wave soldering, but also behind all kinds of mounters to automatically change the material frame for plate collecting. By using an automatic plate collecting machine, the downstream plate collecting work of the SMT production line was achieved, reducing the workload of personnel.
【Case presentation】
—
Automatic frame change, accelerating for you

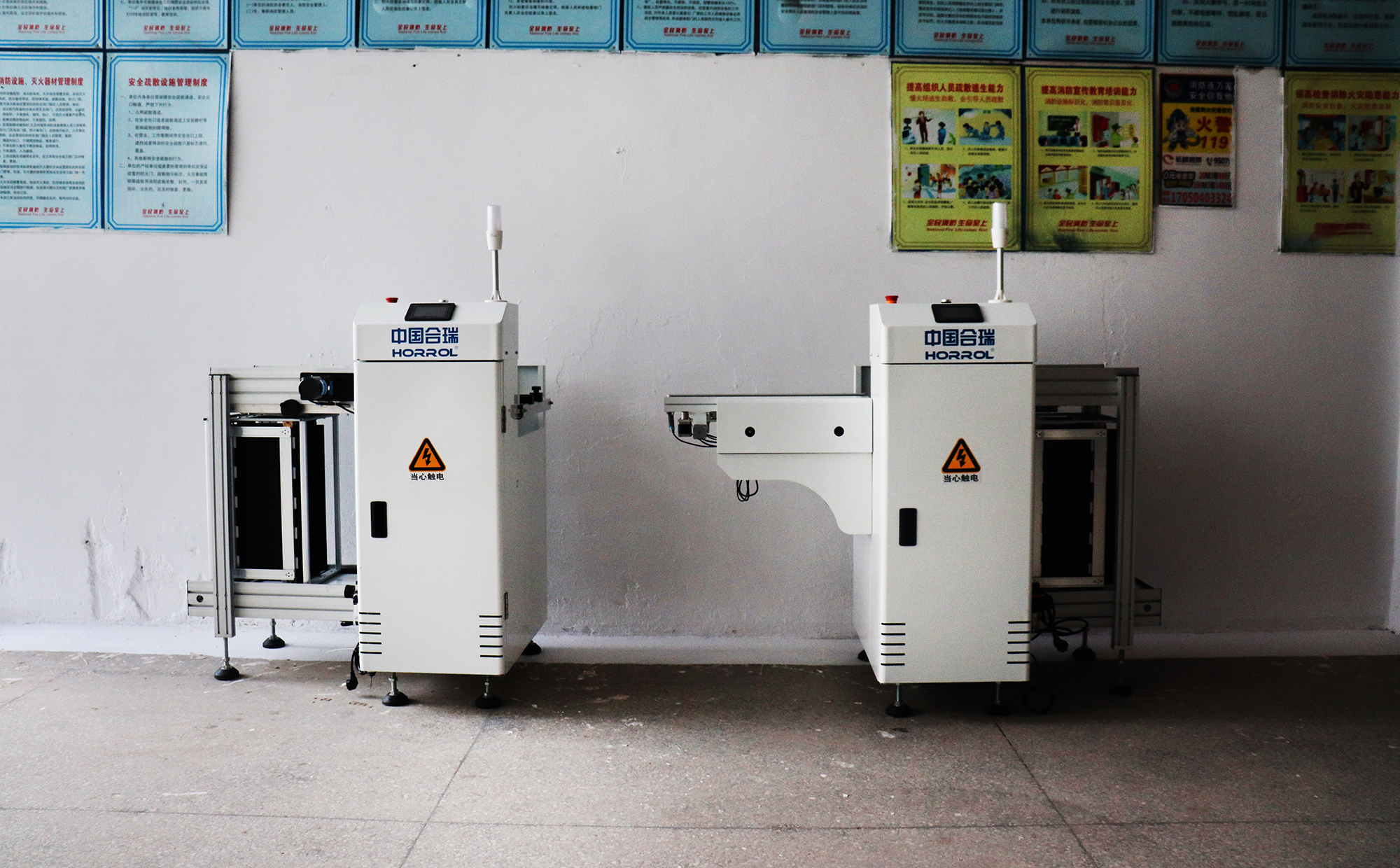

Automatic loader
Horrol Technology

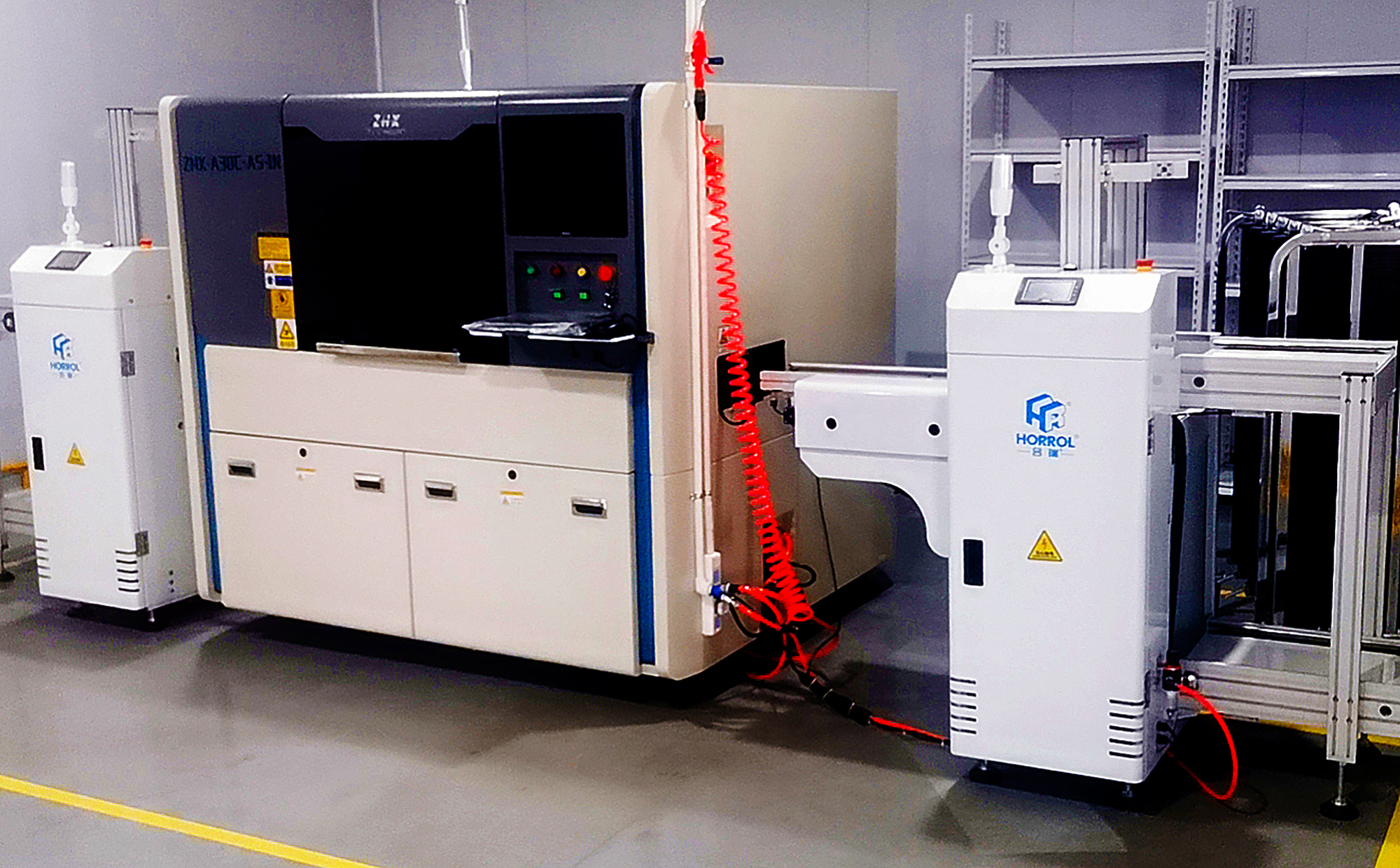

Automatic loader
Horrol Technology

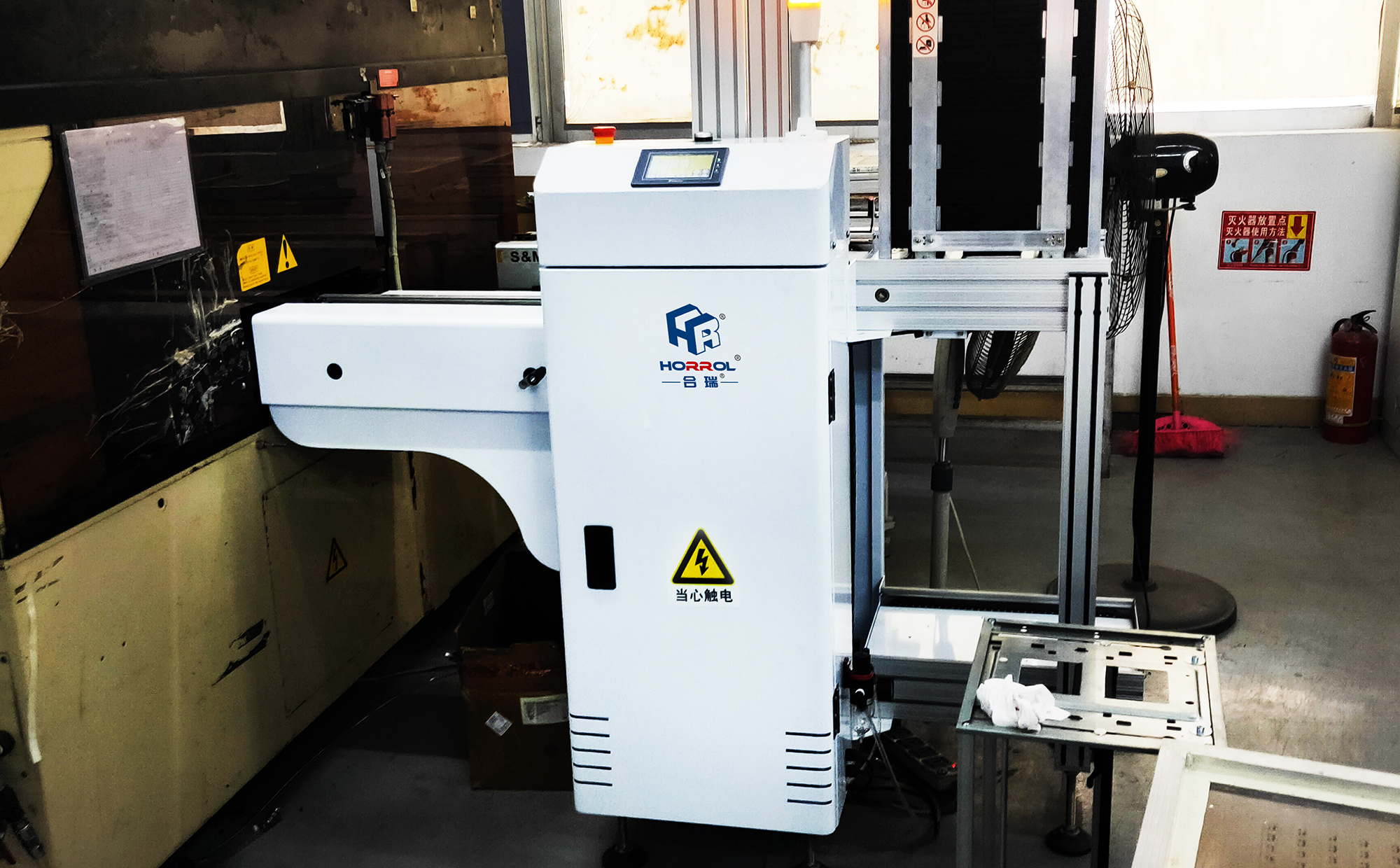

Automatic loader
Horrol Technology

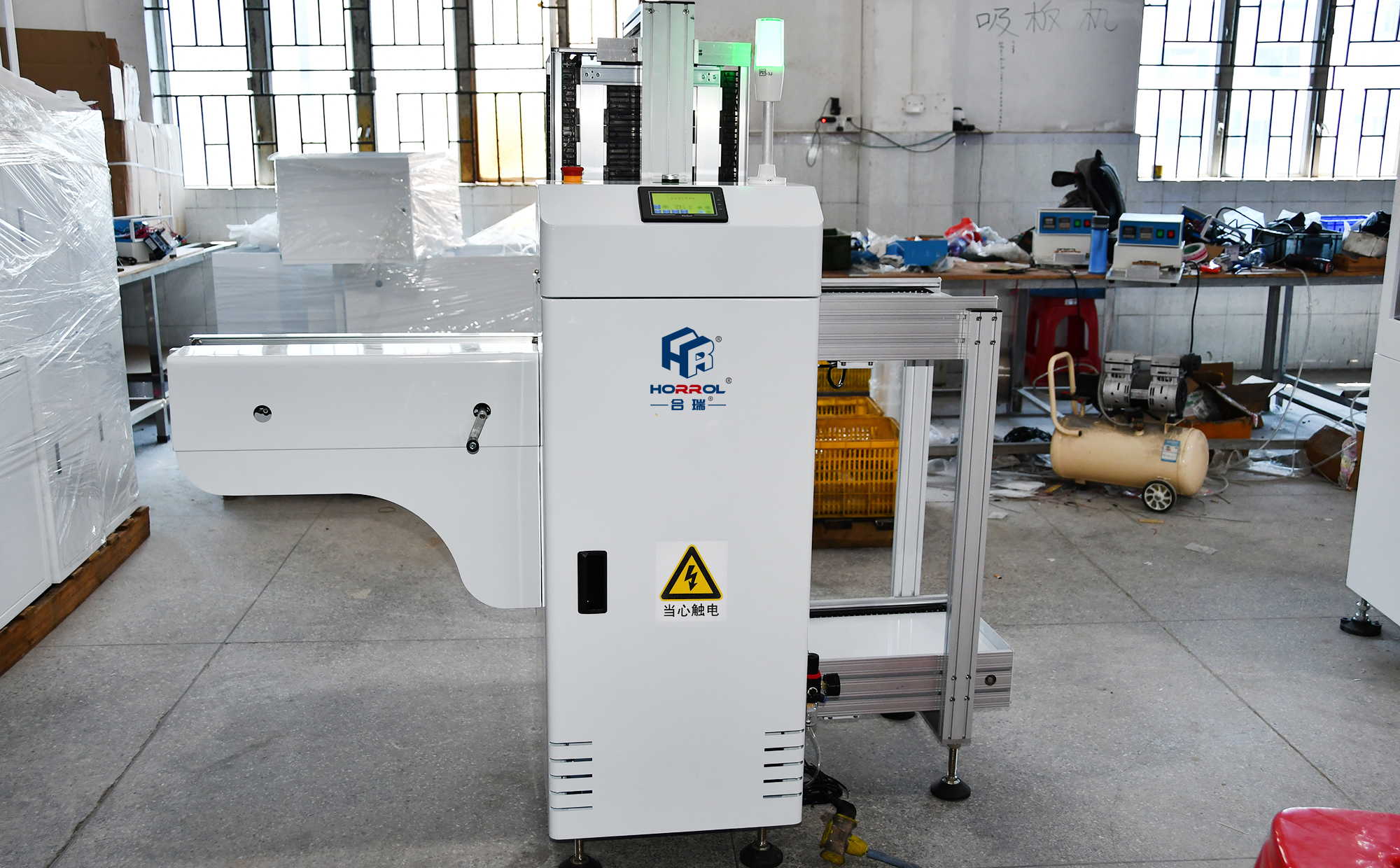

Automatic loader
Horrol Technology

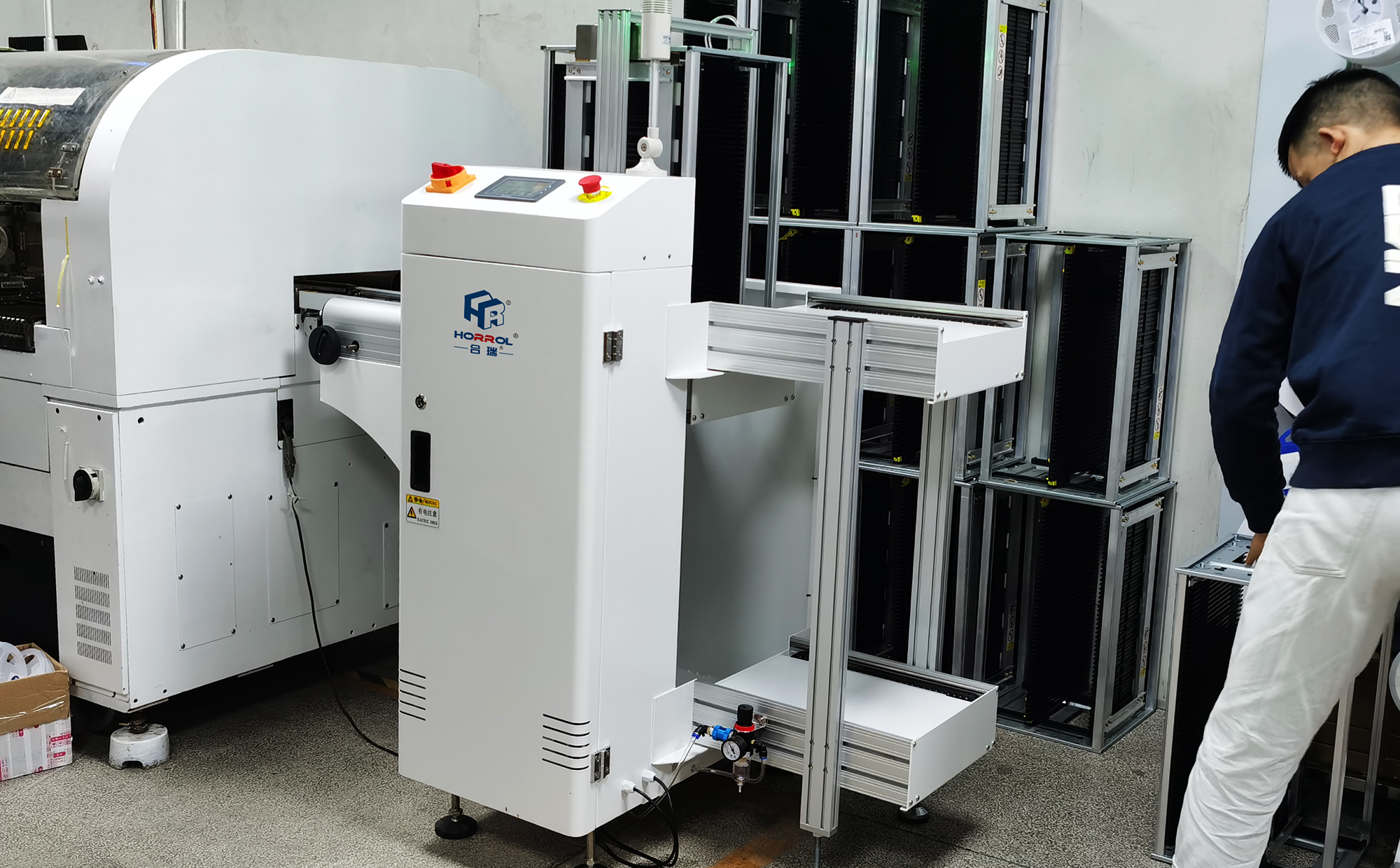

Fully automatic plate stacker
Horrol Technology

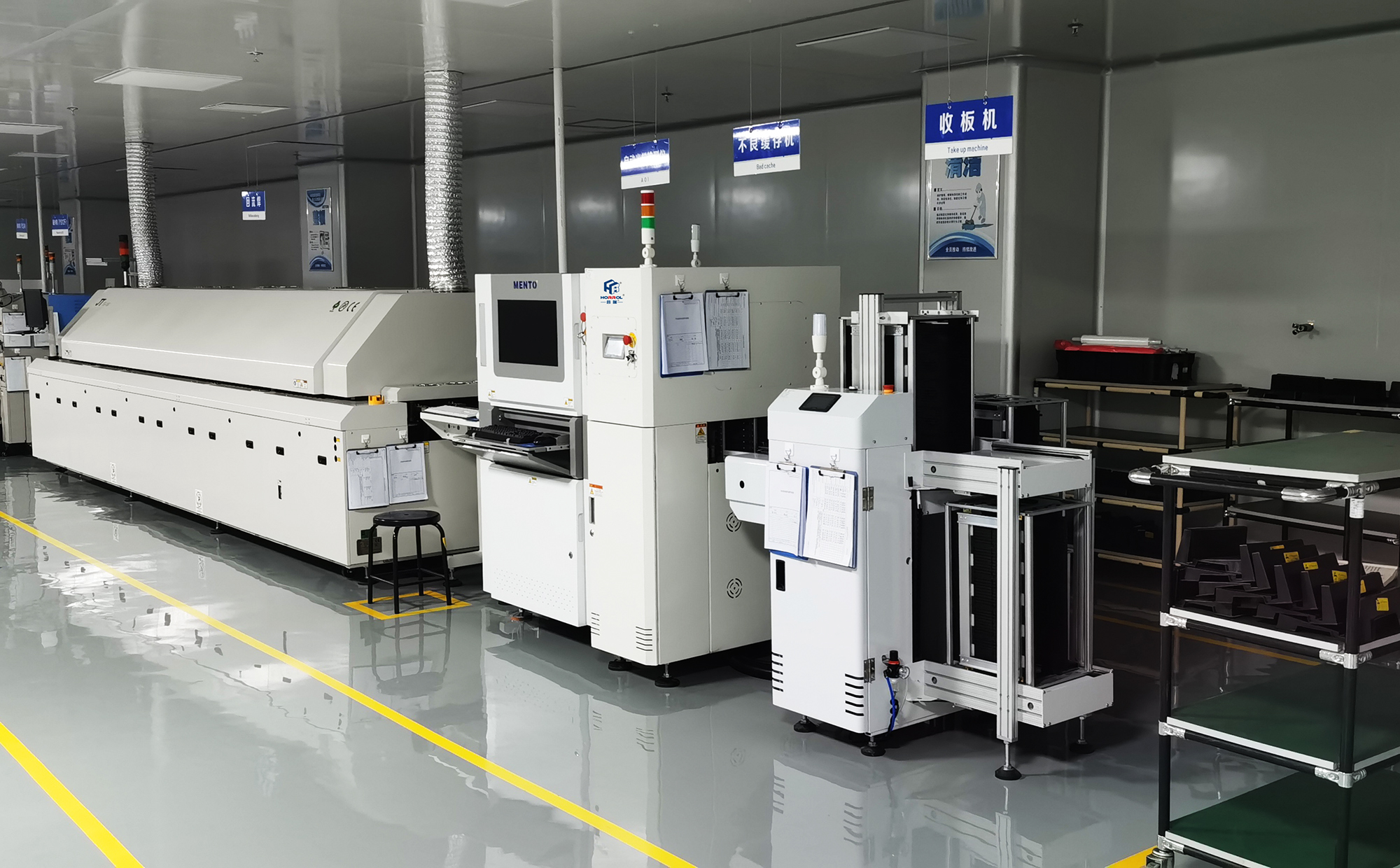

Fully automatic plate stacker
Horrol Technology

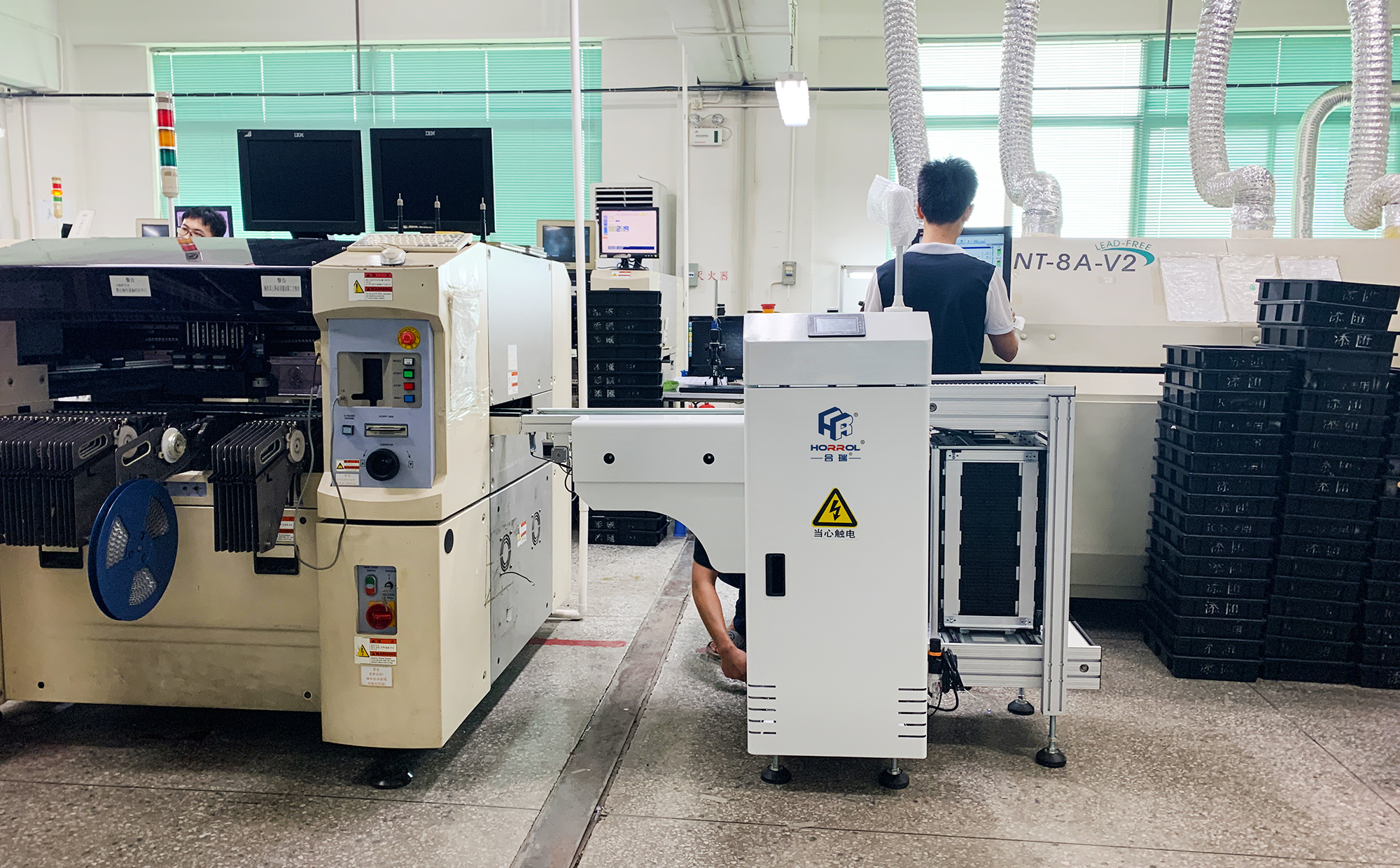

Fully automatic plate stacker
Horrol Technology
Fully automatic plate stacker
Horrol Technology
SMT board splicing machine
Horrol Technology
SMT board splicing machine
Horrol Technology
SMT board splicing machine
Horrol Technology
SMT board splicing machine
Horrol Technology
SMT receiving machine
Horrol Technology
SMT receiving machine
Horrol Technology
SMT receiving machine
Horrol Technology
SMT receiving machine
Horrol Technology
Technical Parameter
—
The 11th generation fully automatic upper and lower board machines of Horrol Technology all use ball screw for width adjustment, and the tracks are made of electrophoretic aluminum alloy profiles. Equipped with a new generation of stable and simple operation pages, the equipment adds ultra strong thickness of painted steel plates, which are stable, durable, and sturdy.
| Equipment model | HR-AL-250 | HR-AL-330 | HR-AL-390 | HR-AL-460 |
| Controller | PLC | PLC | PLC | PLC |
| Overall dimensions | 1700x780x1200mm | 1900x860x1200mm | 2200x920x1200mm | 2200x1120x1200mm |
| Frame up time | about 3s | about 3s | about 3s | about 3s |
| Material box replacement time | about 5s | about 5s | about 5s | about 5s |
| Power supply and load | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw |
| Air pressure and flow rate | 4-6bar，≤10L/min | 4-6bar，≤10L/min | 4-6bar，≤10L/min | 4-6bar，≤10L/min |
| Orbit | 900±20mm | 900±20mm | 900±20mm | 900±20mm |
| Transport Direction | Left⇆Right | Left⇆Right | Left⇆Right | Left⇆Right |
| Allowable plate thickness | 0.4-5mm | 0.4-5mm | 0.4-5mm | 0.4-5mm |
| Allowable part height | ≤2.5cm | ≤2.5cm | ≤2.5cm | ≤2.5cm |
| Step selection | 1-4 (10mm steps) | 1-4 (10mm steps) | 1-4 (10mm steps) | 1-4 (10mm steps) |
| Sensor | Photoelectric induction | Photoelectric induction | Photoelectric induction | Photoelectric induction |
| Running the motor | stepping motor | stepping motor | stepping motor | stepping motor |
| Material frame size | 355x320x563mm | 460x400x563mm | 535x460x570mm | 535x530x570mm |
| Fault detect | I/O signal detection | I/O signal detection | I/O signal detection | I/O signal detection |
| Allowable board size | （50x50）x（350x250）mm | （50x50）x（455x330）mm | （50x50）x（530x390）mm | （50x50）x（530x460）mm |
| Equipment weight | 150kg | 175kg | 215kg | 240kg |
The above parameters are for reference only. If you need customization, please consult sales.
