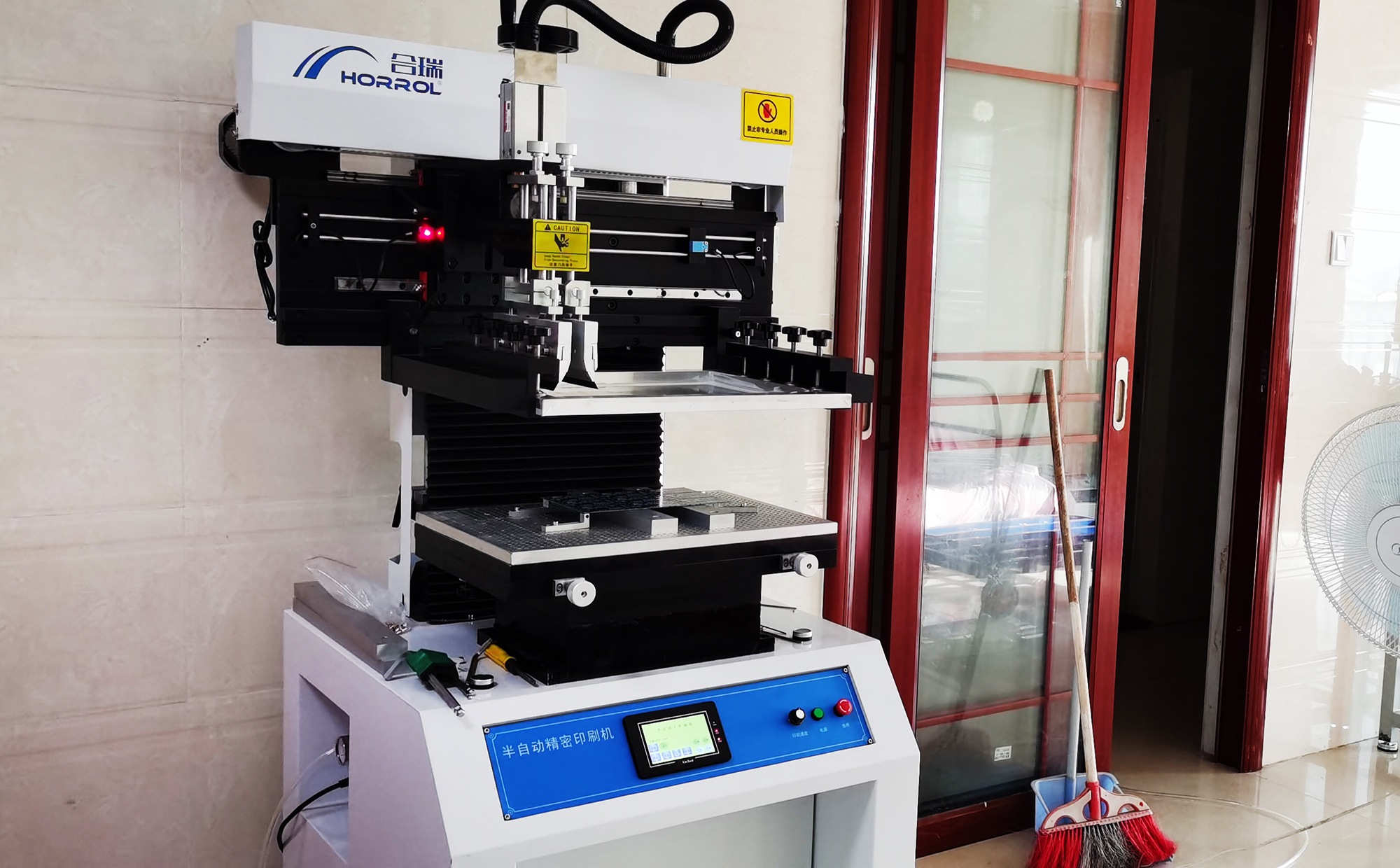

Semi-automatic solder paste printing machine
—

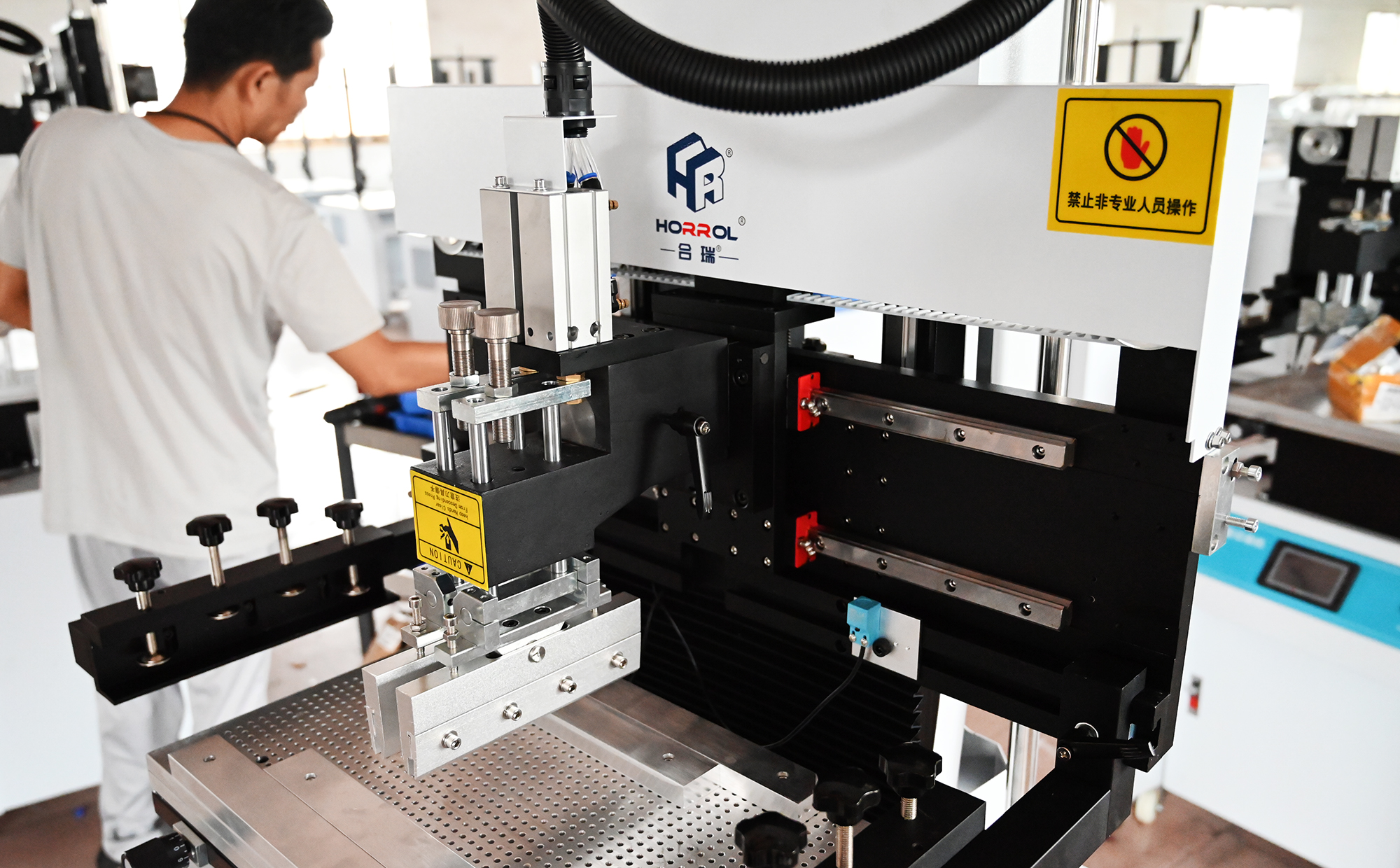

The semi-automatic solder paste printing machine can be used for scraping solder paste, scraping red glue, and scraping thermal conductive silicone grease on SMT production lines. The semi-automatic solder paste printing machine produced by Horrol Technology is incomparable to other brands in the market. The left and right scraping actions of the Horrol brand solder paste printing machine adopt sliding rails and three-phase motor actions, ensuring the precision of the printing machine and avoiding uneven scraping of solder paste.
【Case presentation】
—
Safe operation, easy and efficient
Semi-automatic printing machine
Horrol Technology
Semi-automatic printing machine
Horrol Technology
Semi-automatic printing machine
Horrol Technology
Semi-automatic printing machine
Horrol Technology
Solder Paste Printer
Horrol Technology
Solder Paste Printer
Horrol Technology
Solder Paste Printer
Horrol Technology
Solder Paste Printer
Horrol Technology
Solder paste scraping machine
Horrol Technology
Solder paste scraping machine
Horrol Technology
Solder paste scraping machine
Horrol Technology
Solder paste scraping machine
Horrol Technology
Red glue printing machine
Horrol Technology
Red glue printing machine
Horrol Technology
Silicone printing machine
Horrol Technology
Silicone printing machine
Horrol Technology
Technical Parameter
—
| 设备型号 | HR-SAPP-400 | HR-SAPP-600 | HR-SAPP-1200 | HR-SAPP-1500 |
| 控制模块 | PLC工控 | PLC工控 | PLC工控 | PLC工控 |
| 外形尺寸 | 700x900x1680mm | 900x900x1680mm | 1500x900x1680mm | 1800x900x1680mm |
| 工作台板 | 500x320mm | 700x320mm | 1300x320mm | 1600x320mm |
| 钢网允许尺寸 | 600x450mm | 800x450mm | 1400x450mm | 1700x450mm |
| 电源及负荷 | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw | 220v/0.3kw |
| 气压及流量 | 4-6bar，≤10L/分钟 | 4-6bar，≤10L/分钟 | 4-6bar，≤10L/分钟 | 4-6bar，≤10L/分钟 |
| 主动气缸 | SC63x150-S | SC63x150-S | SC63x150-S | SC63x150-S |
| 刀头气缸 | CDU25x50 | CDU25x50 | CDU25x50 | CDU25x50 |
| 滑动导轨 | 直线导轨 | 直线导轨 | 直线导轨 | 直线导轨 |
| 印刷精度 | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| 微调范围 | ±10mm | ±10mm | ±10mm | ±10mm |
| 移动电机 | 三相60W | 三相60W | 三相60W | 三相60W |
| 电源电压 | 单相220V | 单相220V | 单相220V | 单相220V |
| 移动速度 | 0~2200mm/min | 0~2200mm/min | 0~2200mm/min | 0~2200mm/min |
| 故障检测 | I/O信号检测 | I/O信号检测 | I/O信号检测 | I/O信号检测 |
| 移动方向 | 左右移动 | 左右移动 | 左右移动 | 左右移动 |
| 设备重量 | 195kg | 245kg | 280kg | 340kg |
The above parameters are for reference only. If you need customization, please consult sales.
