Horrol Technology Micro Board Loading Machine Small Feeding Machine Automatic Width Adjustment Board Feeding Machine

Micro board loader

—


The micro board loader has a small footprint and can be used on both single and double-sided boards, with flexible and stable anti jamming boards. Horrol Technology's multifunctional mini board feeder, newly upgraded touch screen PLC program, one click direction switching, ball screw configuration, automatic adjustment of width, can pass through 550 * 450 large boards, dual safety induction control on both sides to adjust balance, and comes with anti jamming board protection settings.

WeChat

【Case presentation】

—

Electric stability, automatic leveling

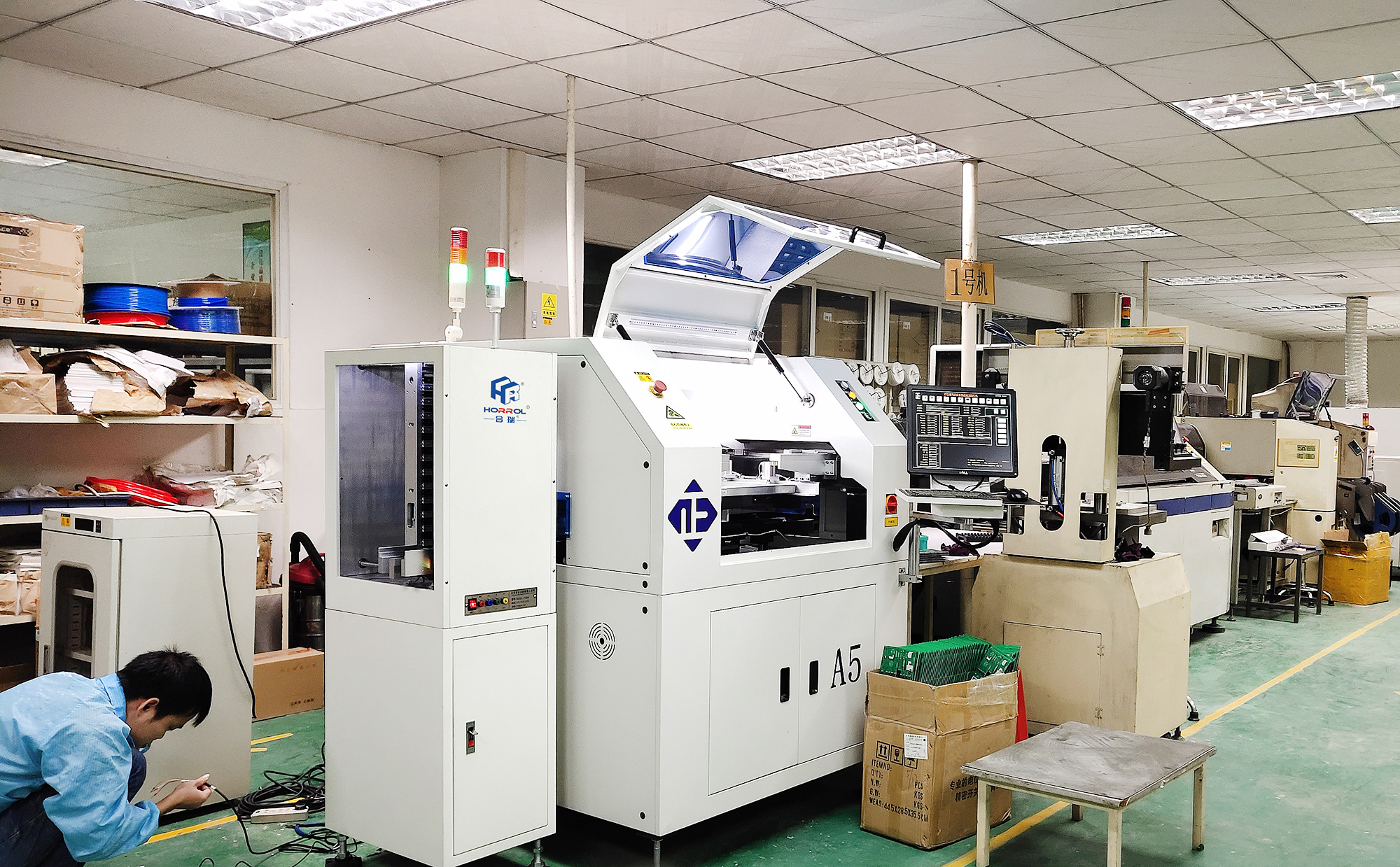

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro board feeder

Horrol Technology

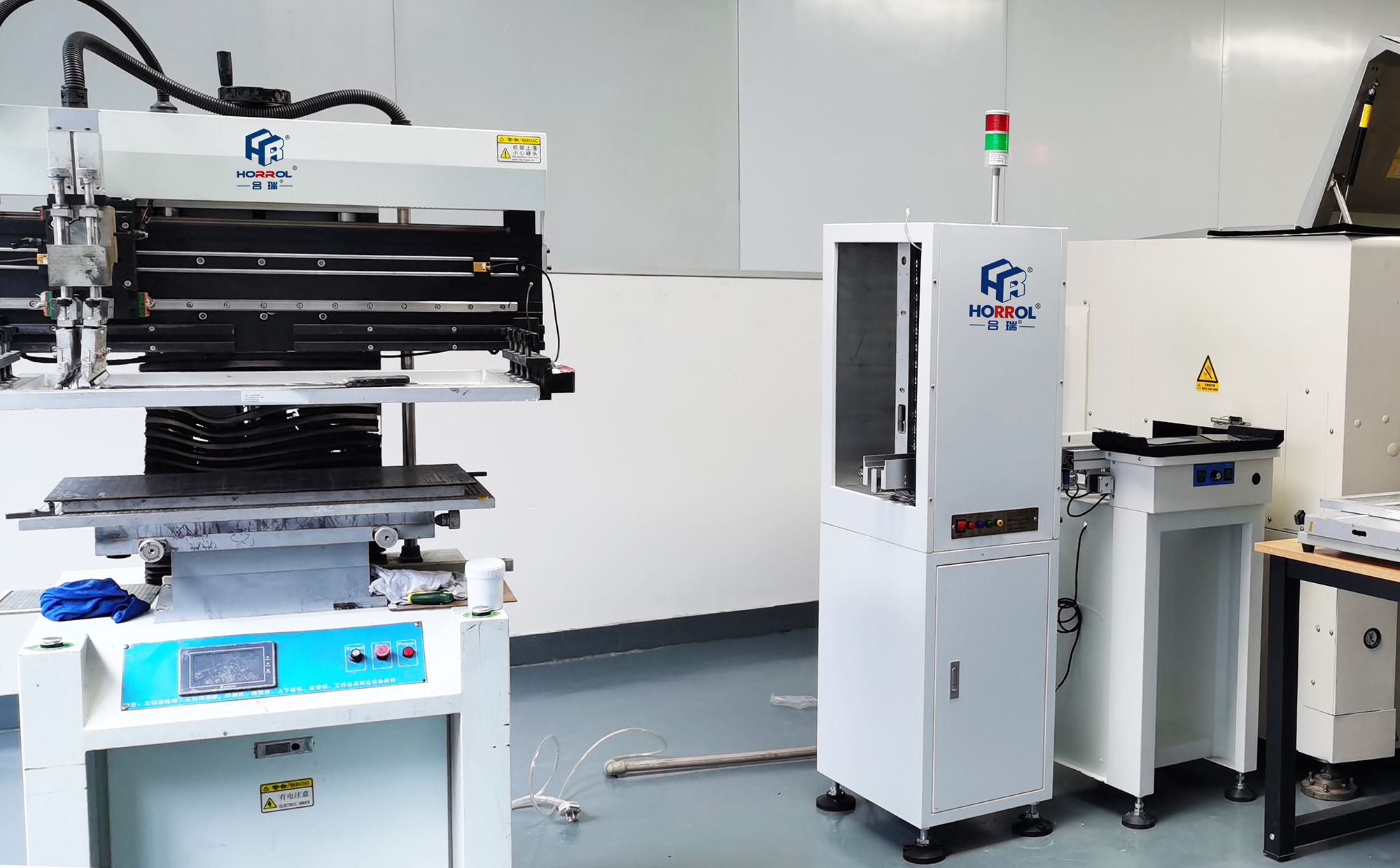

Horrol Technology semi-automatic solder paste printing machine, miniature feeding machine

Micro board feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro board feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro board feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro board loader

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro board loader

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro board loader

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro board loader

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine and small loading machine

Micro feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine, small loading machine, and feeding machine

Small plate feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine, small loading machine, and feeding machine

Small plate feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine, small loading machine, and feeding machine

Small plate feeder

Horrol Technology

Horrol Technology's multifunctional micro loading machine, small loading machine, and feeding machine

Small plate feeder

Horrol Technology

Comprehensive display of micro board feeder

Technical Parameter

—

Equipment model HR-MBF-450
External dimensions L650xW700xH1640mm
Voltage power 220V,50/60Hz,200w
Controller Industrial PLC+touch color screen
Stop board detection One click shutdown
One click close and start ≤50PCS
Capacity ＜100kg
Weight of push plate 10kg
Control mode Manual mode+automatic mode
Grid spacing 10mm
Track height 900±50mm
Direction switching One click left and right switching
lifting speed Adjustable speed
Track width adjustment Automatic adjustment
Material of storage panel grille Aluminum alloy
Push plate transportation speed Adjustable speed
Plate balance adjustment Double sided dual induction automatic leveling
Counting function Visual counting function
Transfer track material CNC aluminum alloy
Track screw configuration Up and down ball screw
Fault Alarm I/O signal detection+sound and light alarm+alarm recording
Allow board size L50xW50xTHK0.4-L550xW450xTHK5mm
Equipment weight 125kg

The above parameters are for reference only. If customization is required, please consult sales.

Mini Board Mounted Machine Landscape
SMT multifunctional micro board loader
