Horrol Cloud Technology fully automatic sole cleaning machine belt brush shoe washing machine air shower cleaning machine synchronous belt

The belt brush of the fully automatic sole cleaning machine is a synchronous belt brush that is corrosion-resistant and wear-resistant, and is computer-sewn with an integrated Bondi line. The belt of the shoe washing machine adopts an open mold integrated molding process, and the brush is made of high-hook dense imported nylon material. The belt brush of the sole washing machine is a key component of the equipment. The sole can be cleaned by rubbing the sole with water through the belt brush. Th

Horrol Cloud Technology fully automatic sole cleaning machine belt brush shoe washing machine air shower cleaning machine synchronous belt

选择规格数量

Sole cleaning machine belt brush

HSB-T5D960 HSB-T5D1020 HSB-T5D1680 HSB-T5D2090 HSB-T5D2690 HSB-T5D3690

select Specifications



  • Product Details
  • Production scale
  • Specifications

The belt brush of the fully automatic sole cleaning machine is a synchronous belt brush that is corrosion-resistant and wear-resistant, and is computer-sewn with an integrated Bondi line. The belt of the shoe washing machine adopts an open mold integrated molding process, and the brush is made of high-hook dense imported nylon material. The belt brush of the sole washing machine is a key component of the equipment. The sole can be cleaned by rubbing the sole with water through the belt brush. The belt brush of the sole cleaning machine adopts the T5 synchronous belt gene, which is composed of two parts: the brush and the synchronous belt. After computer sewing, it can be installed and used.

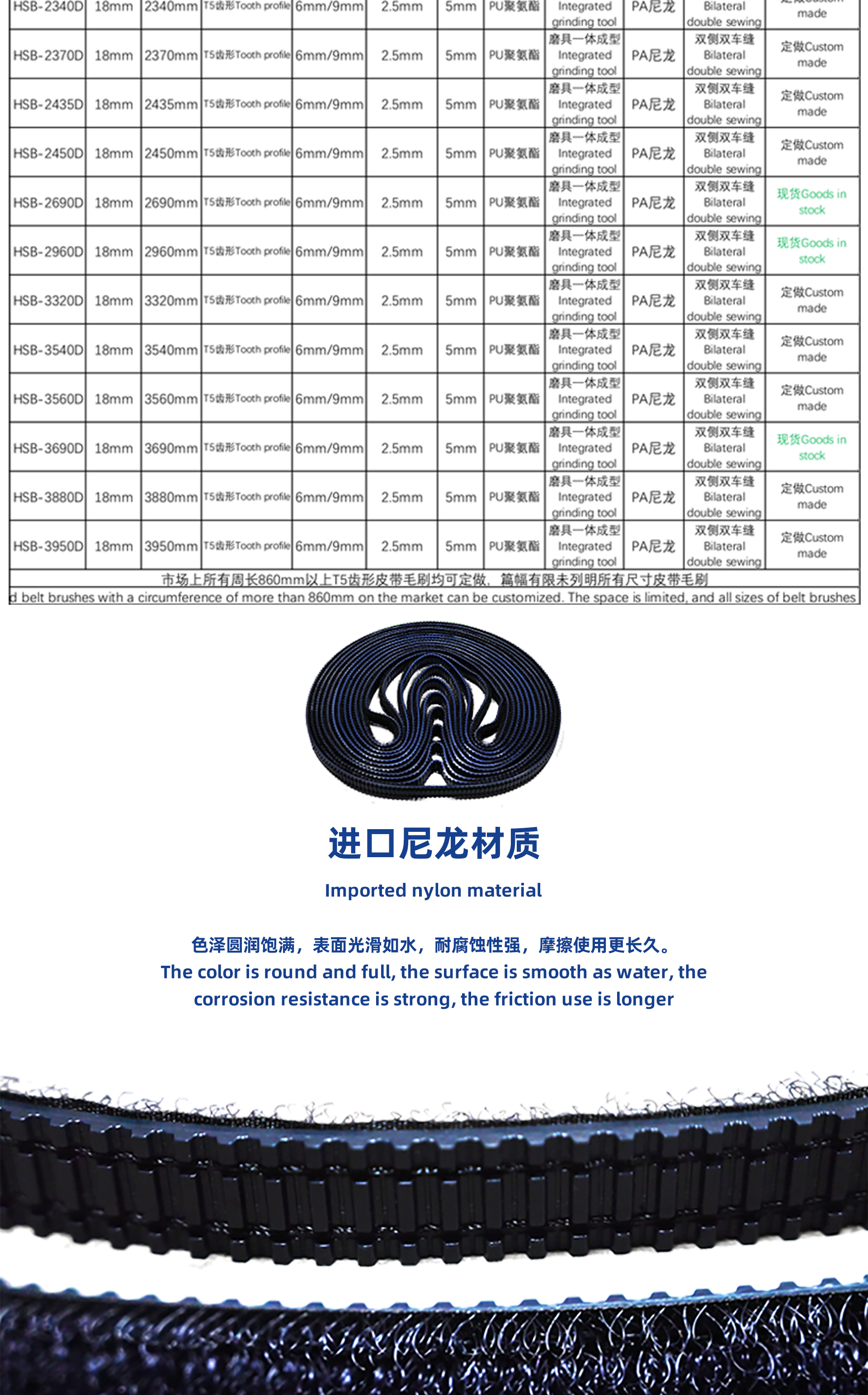

Specifications
WidthCircumference sizeTooth profile standardBrush lengthTiming belt thicknessTooth spacingBelt MaterialCraftsmanshipSewing materialSewing processCargo status
HRC-T5D86018mm860mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D96018mm960mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D102018mm1020mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingSpot goods
HRC-T5D123018mm1230mmT56/9mm2.5 m5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D168018mm1680mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingSpot goods
HRC-T5D200018mm2000mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D209018mm2090mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingSpot goods
HRC_T5D234018mm2340mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D234518mm2345mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D237018mm2370mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D243018mm2430mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D243518mm2435mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D245018mm2450mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D249518mm2495mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D250018mm2500mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D269018mm2690mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingSpot goods
HRC-T5D332018mm3320mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D336018mm3360mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D354018mm3540mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D356018mm3560mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made
HRC-T5D368018mm3680mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingSpot goods
HRC-T5D369018mm3690mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingSpot goods
HRC-T5D395018mm3950mmT56/9mm2.5mm5mmPolyurethane and DuPont NylonOne-piece mold formingBondi LineComputer sewingNo stock, custom made

*All T5 toothed belt brushes with a circumference of more than 860mm on the market can be customized. Due to limited space, not all sizes of belt brushes are listed.*
