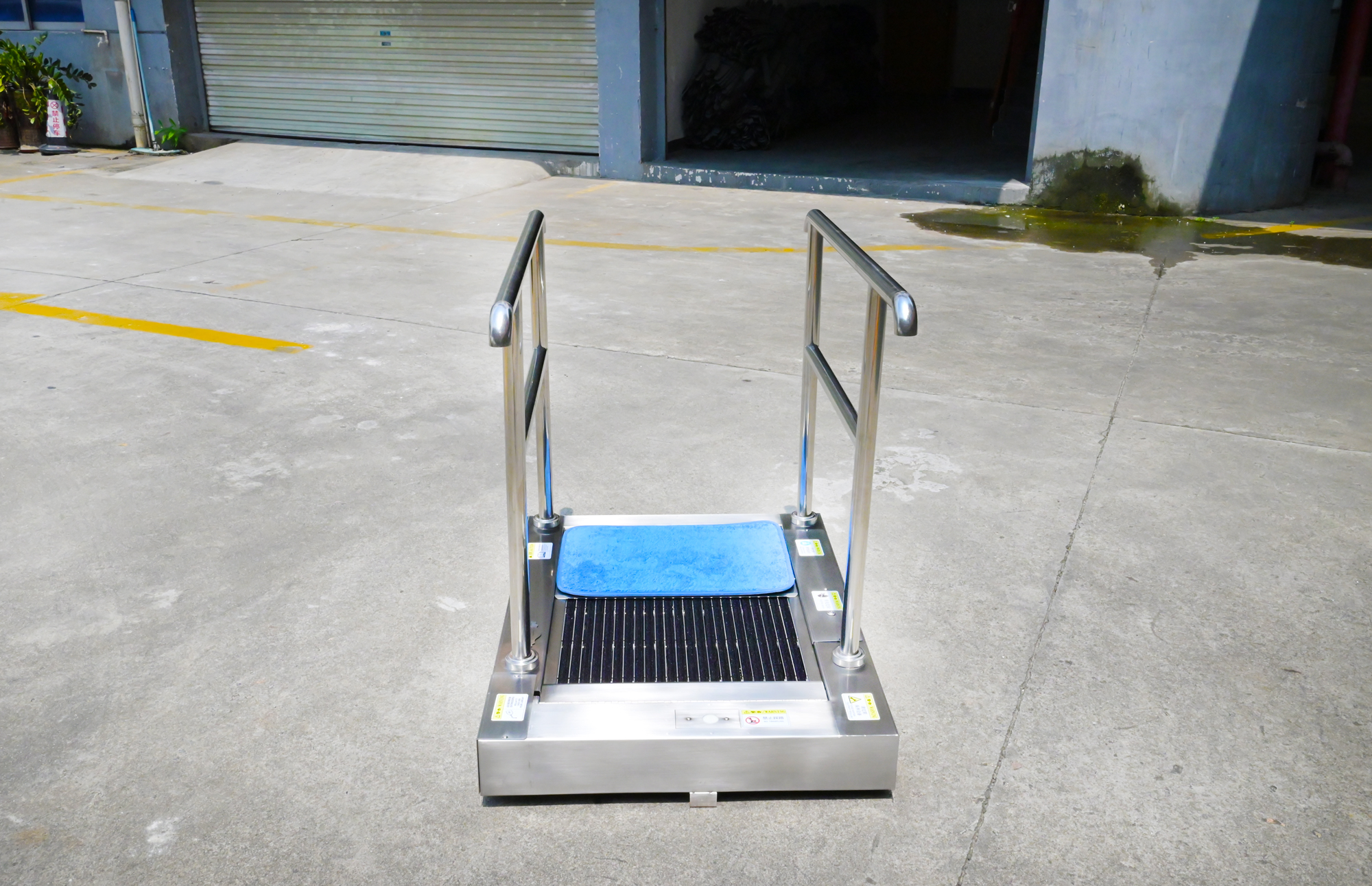

The working principle of the fully automatic sole cleaning machine is mainly based on the following steps:

1. Automatic induction start: When someone walks past the shoe cleaning machine, the machine detects the presence of the person through a Radar Microwave Sensor or an infrared sensor and automatically starts the cleaning program.

2. Motor drives the transmission: The motor inside the machine starts and drives the transmission shaft to rotate. The transmission shaft is the key component connecting the motor and the belt brush.

3. Belt brush rotation friction: As the drive shaft rotates, the belt brushes (usually made of rubber or nylon) attached to it will also start to rotate. These brushes are pre-soaked, and when they rotate, they will contact and rub against the soles of the shoes, effectively removing dust and dirt from the soles.

4. Cleaning dirt and dust: When the soles pass through the cleaning machine, the rotating force of the belt brush cleans the dust and dirt on the soles. The dirt is then collected in the collection tank at the bottom of the machine.

5. Drainage and water absorption: The washed dirt and water are transported to the machine's drainage system and discharged through a high-pressure sewage pump. At the same time, the end of the machine is usually equipped with a water-absorbing pad or drying area to remove excess water before the soles leave the cleaning machine.

6. Automatic shutdown: When the soles of the person's shoes completely leave the cleaning machine, the sensor detects that there is no one again, and the machine automatically stops the cleaning program and enters standby mode.

The fully automatic sole cleaning machine is designed to provide an efficient and hygienic cleaning method to reduce the pollution of the indoor environment, especially in places with high requirements for cleanliness, such as dust-free workshops, laboratories, hospitals, etc. Through automated operation, it not only improves cleaning efficiency, but also saves human resources and time.

Automatic shoe sole cleaning machines do require regular maintenance to ensure proper operation and extended life. Here are some key maintenance steps and recommendations:

1. Control system maintenance: The controller is the "brain" of the device and needs to be kept dry and free of water. If water enters, immediately turn off the power and remove the moisture, then blow dry. When not in use for a long time, the device should be stored in a dry and ventilated place to prevent the control box from getting damp and the circuit board from being damaged.

2. Cleaning of water exchange system: Regularly clean the water exchange system, including the forced sewage discharge button, sewage discharge pump, solenoid valve and water level sensor. In automatic mode, the equipment will automatically change the water, while in manual mode, manual sewage discharge and water addition are required according to the water quality.

3. Quarterly inspection and lubrication: Lubricate the motor and transmission parts (such as gears and chains) every quarter and add butter to ensure smooth operation.

4. Regular maintenance and garbage cleaning: Regularly scrub the equipment appearance, sink, belt brush area, etc., clean up garbage in time to avoid damage to the equipment.

5. Belt brush replacement: Due to long-term use and dirty water immersion, the belt brush may be damaged. It is very important to know how to replace the belt brush, which can solve the problem quickly and save costs.

6. Daily cleaning: Thoroughly clean the garbage and sand in the sewage pool and water pump tank every day. You can use a vacuum cleaner. For the belt brush, you can rinse it with hand-carried water at intervals.

7. Chain and gear lubricant: Add lubricant to the chain and gears every three months.

8. Equipment surface cleaning: Scrub and clean the equipment surface from time to time.

9. Update the absorbent pad: Clean and dry the absorbent pad regularly according to usage and update it when necessary.

Taboo items: During operation, it is strictly forbidden to allow water to enter the control box, it is strictly forbidden to mix sharp solids such as nails, blades, electronic components in the equipment cleaning area, and it is strictly forbidden to discard debris into the equipment.

Following these maintenance guidelines can ensure long-term stable operation of your fully automatic sole washing machine and maximize its service life.
