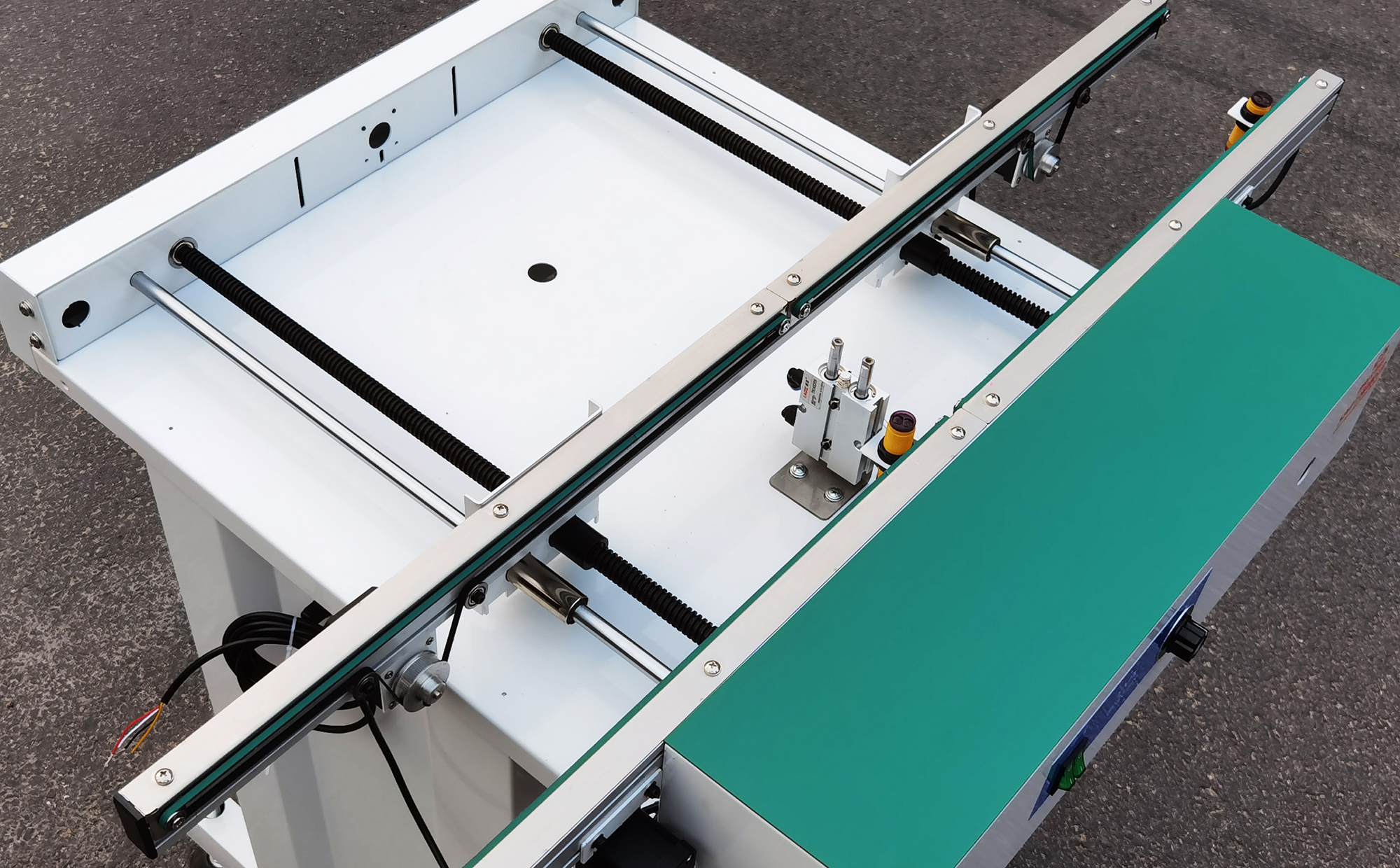

SMT Docking Station
—
The docking station is used for excessive connection of SMT production lines, and the Horrol Technology docking station uses ball screws that can be adjusted freely within a width range of 460mm. The SMT docking station can serve as a transmission, detection, and bridge connection between devices. The docking station is divided into two types: belt type and chain type, and additional configurations such as intermediate stop, transparent acrylic observation cover, and lighting can be added as needed.
【Case presentation】
—
Automatic frame change, accelerating for you
SMT Docking Station
Horrol Technology
SMT Docking Station
Horrol Technology
SMT Docking Station
Horrol Technology
SMT Docking Station
Horrol Technology
Chain dock
Horrol Technology
Chain dock
Horrol Technology
Lifting dock
Horrol Technology
Lifting dock
Horrol Technology
Detection feeder
Horrol Technology
Keyboard tray docking station
Horrol Technology

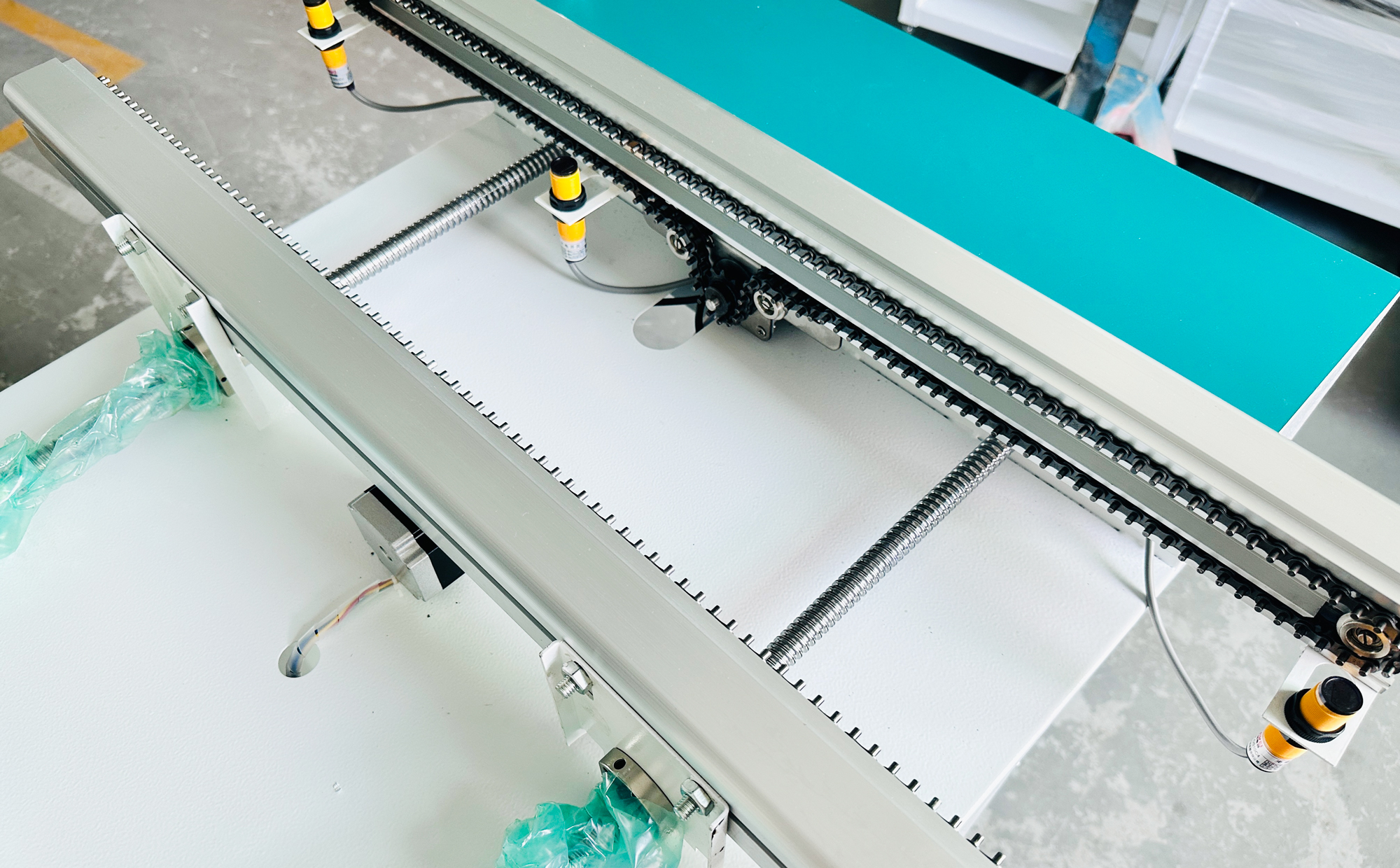

Intermediate stop chain connecting platform
Horrol Technology
One click switch direction docking station
Horrol Technology
Emergency switch docking station
Horrol Technology
Observation hood docking station
Horrol Technology
Double section connecting platform
Horrol Technology
Double track connecting platform
Horrol Technology
Technical Parameter
—
| Equipment model | HR-DS500 | HR-DS600 | HR-DS800 | HR-DS1000 | HR-DS1200 | HR-DS1500 |
| Adjusting the track | ball screw | ball screw | ball screw | ball screw | ball screw | ball screw |
| Overall dimensions | 500x770x920mm | 600x770x920mm | 800x770x920mm | 1000x770x920mm | 1200x770x920mm | 1500x770x920mm |
| Width adjustment range | 30-460mm | 30-460mm | 30-460mm | 30-460mm | 30-460mm | 30-460mm |
| Transfer height | 900±20mm | 900±20mm | 900±20mm | 900±20mm | 900±20mm | 900±20mm |
| Power supply and load | 220v/0.2kw | 220v/0.2kw | 220v/0.2kw | 220v/0.2kw | 220v/0.2kw | 220v/0.2kw |
| Transmission speed | Adjustable knob | Adjustable knob | Adjustable knob | Adjustable knob | Adjustable knob | Adjustable knob |
| Direction conversion | One click switching | One click switching | One click switching | One click switching | One click switching | One click switching |
| Transport Direction | Left⇆Right | Left⇆Right | Left⇆Right | Left⇆Right | Left⇆Right | Left⇆Right |
| Sensor | Photoelectric induction | Photoelectric induction | Photoelectric induction | Photoelectric induction | Photoelectric induction | Photoelectric induction |
| Transmission type | Belt type, chain type | Belt type, chain type | Belt type, chain type | Belt type, chain type | Belt type, chain type | Belt type, chain type |
| Optional items | Lamp holder, intermediate stop, acrylic cover, pull-out keyboard holder, one button straight through, cylinder blocking | |||||
The above parameters are for reference only. If you need customization, please consult sales.
